Battery Replacement for Autel MK900 MK900BT MK900TS Scanner

This Battery fits Autel MaxiCOM MK900, MK900-BT, MK900-TS Diagnostic Scan Tools.

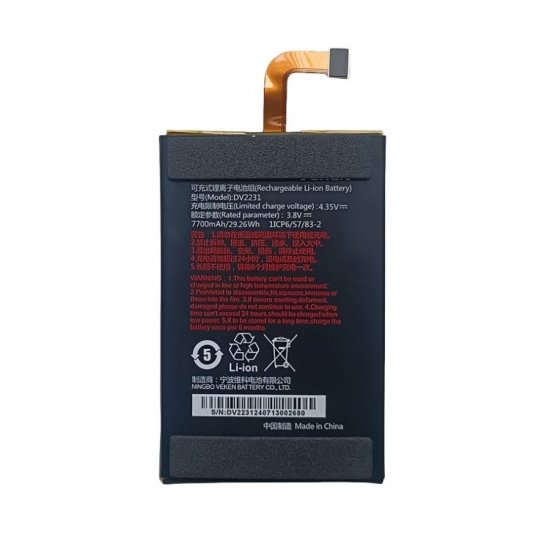

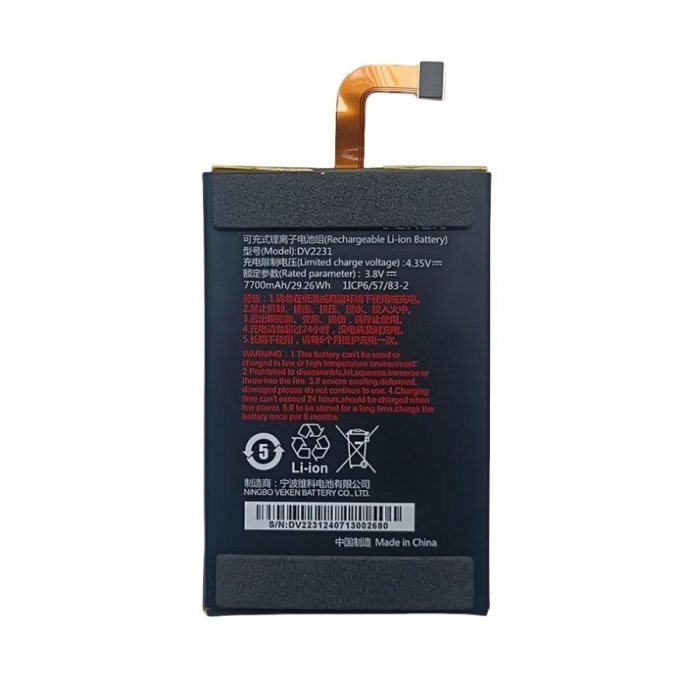

Model: DV2231     Capacity: 3.8V  7700mAh

Package: Battery x1;

How to replace the battery for Autel  MK900, MK900-BT, MK900-TS scanner:

1. Remove the screws on the rear housing.

2. Unlock the screen ribbon cable and remove the front housing.

3. Remove the screws and metal plates on the battery, unplug the battery cable and remove it.

4. Install the new battery and re-assemble the scanner.
